A risk management framework for software projects

The goal of risk management is to minimize risk in a technical project by minimizing the probability of failure and minimizing the impact of failure.

Introduction

If you haven't worked in a regulated environment before, then you may not be familiar with risk management documents such as FMEAs, FTAs, or PRAs. Risk management is notoriously a snoozer of a topic, but behind this deceptive veneer lie some valuable tools that could benefit software projects at large, and not just in regulated environments.

One of these tools is the FMEA, or Failure Modes and Effects Analysis. Before we start diving into the FMEA though, let's set up a little background information.

"The Fatigues", Seinfeld (1996)

Background

In the broader discipline of engineering, a failure can be defined as an unintended consequence in a manufactured item. The manifestation of a failure in software development is commonly known as a bug.

To formalize the definition of a bug, I'll define it as:
Unexpected behavior in a deployed application as a result of code that does not adequately cover all possible field use conditions

That's a mouthful. Let's just say it's:
Code that doesn't behave the way it was designed

Some bugs are immediately obvious and can be fixed in the moment. Others are latent, and only manifest themselves in the field or in a production environment. The cost of fixing a bug grows exponentially from the time it is created all the way to field deployment. This means the cost to fix a bug in code as soon as you write the code is very minimal. This is compared to noticing it when the code base is more mature, core engineers have left the project, and eventually the product is deployed to the field and might require a recall. Depending on the software, you might be able to deploy an over-the-air patch, but in critical embedded systems this may not be an option.

"RussFest", Silicon Valley (2019)

"Just eliminate risk!"

This is extremely concerning to most managers. If you hang around management long enough, you might start to hear phrases like:

  • By attaining 100% test coverage, we will eliminate risk from this project.

  • When we can guarantee 99.9999% uptime, we can safely assume that failure will never happen.

And my personal favorite:

  • Just eliminate risk!
"A.A.R.M.", The Office (2013)

With a bold statement like that, context matters. The gold standard in highly regulated industries is 6 nines - or 99.9999% reliability. This corresponds to approximately 3.4 defects per million opportunities of failure.

It is a logical fallacy to state that risk can be eliminated. Unless you are working in first principles where MAYBE you can get away with certain guarantees, then you cannot and should not guarantee that your product, whether that be software or hardware, will never fail. The likelihood of failure might range from common to astronomically rare, but it always exists. For this article, I've left the definition of failure rather broad, and we'll find out in another article that there are failures with a range of effects, from minimal to catastrophic.

The goal of risk management is to minimize, not eliminate, risk in a technical project by minimizing the probability of failure and minimizing the impact of failure.

How?

How can we go about minimizing risk effectively? There have been books written about the subject, software tools developed, and an entire risk management consulting industry dedicated to aerospace, medical device, and pharmaceutical risk management. One of the core tools used by every company in these industries is called the FMEA.

The FMEA

The Failure Modes and Effects Analysis, or FMEA, tells you how failures at a component level propagate to system failures. This document can get massively complex for a large system with many subsystems and components, such as an airplane.

So what's the motivation? Why are we going to all this effort to analyze a manufactured product from a risk perspective? A good FMEA tells a good story, and it does so in two key ways:

  • The FMEA tells a top-down story to regulatory bodies
  • The FMEA allows engineers to tell a bottom-up story

When a regulated device fails, the manufacturer has to explain to the regulatory body WHY it failed, and how they will fix it in the future. This is the top-down story. The FDA and FAA are examples of regulated bodies. All they know is that your device failed at the user level, and it's up to the manufacturer to guide them into the details of your device to identify the root cause of the failure, and ultimately fix it.

If a manufacturer is unable to provide a resolution, the device can be pulled from the market, either voluntarily by the manufacturer or as mandated by a regulatory body. A recent high-profile instance of this was the Boeing 737 MAX, which experienced a software failure in a program called MCAS (Maneuvering Characteristics Augmentation System) and ultimately caused 2 fatal accidents.

An Example

Setup

Airplanes and medical devices are very complicated systems, so let's use an example everyone is familiar with - a bicycle. Let's pretend that DEPT® is feeling particularly entrepreneurial and wants to get into the road bike space. Our task as engineers is to build a bicycle that is fast and safe. After all, if we want to sell our bike, we need to both convince customers that it's fast enough to win races, and safe enough to meet the minimum requirements imposed by the FBA (Federal Bicycle Administration), an imaginary entity that allows manufacturers to sell bicycles in the United States.

Components and Functions

The first step is to define the system architecture. Let's call this grouping of top-level entities Components. On our bicycle I’ll keep things simple and only analyze the Drivetrain, Brakes, and Frame for this example. Of course there are many other subsystems we could define and analyze as well, and we could even slice-and-dice the bike architecture in a different way depending on the goals of our analysis.

Some important questions to answer include:

  • What is the boundary of analysis for each component? This means, what sub-components of the bicycle are members of the drivetrain, which are components of the brake, and which are components of the frame?
  • What are the functions of each component? What are some primary and secondary purposes of the drivetrain, the brakes, and the frame?

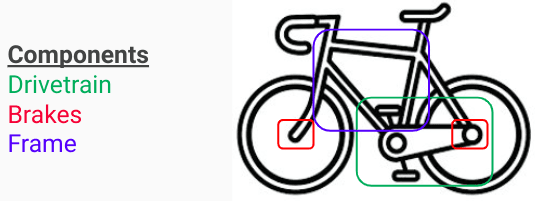

Let's build an actual FMEA for our bicycle. The primary function of the drivetrain is to move the bicycle forwards. In engineering terms we can state this as Converting rotational motion into horizontal motion. The primary function of the brakes is to bring the bicycle to a stop, which we can state as Converting kinetic energy into heat. Finally, the frame has two functions: Supporting the cyclist and Supporting the components of the bicycle.

Component: Drivetrain

Function: Convert rotational motion into horizontal motion

Component: Brakes

Function: Convert kinetic energy into heat

Component: Frame

Function: Support the cyclist
Function: Support the components of the bicycle

Failure Modes

Ok great! So now that we have defined some components and each of their functions, let’s take a look at how these components can fail. (As a little sneak peak, we will be able to recursively define each subsequent level of analysis. In a later example, we will consider the Drivetrain as its own system, identify its Components, and so on.)

A convenient and standard way to define how a component might fail is by writing the Failure Mode as an anti-function. Generally, this would be written something like:

The Component fails to deliver the function.

For our drivetrain, we would say that the Drivetrain fails to convert rotational motion into horizontal motion. This might seem pretty obvious and redundant, but simple verbiage like this keeps things consistent across our risk analysis. This allows us to focus on why things are failing, and how to mitigate those failures.

Let’s use this same template to come up with failure modes for the Brakes and Frame. A way that our brakes can fail is by failing to convert kinetic energy into heat. Since our frame has two functions, we can write two failure modes, one for each function - Frame fails to support cyclist, and Frame fails to support components.

Component: Drivetrain

Function: Convert rotational motion into horizontal motion
Failure Mode: Drivetrain fails to convert rotational motion into horizontal motion

Component: Brakes

Function: Convert kinetic energy into heat
Failure Mode: Brakes fail to convert kinetic energy into heat

Component: Frame

Function: Support the cyclist
Failure Mode: Frame fails to support cyclist
Function: Support the components of the bicycle
Failure Mode: Frame fails to support components

Great! We’ve come up with a bunch of ways that our bike can fail. But are these the only ways these components can fail? Of course not! There are a wide variety of ways anything can fail, and not just catastrophically as we seem to have defined here.

As a reminder, a failure mode is defined as the manner in which a component fails to meet or deliver its intended function. According to risk management theory, there are 6 main ways most components can fail. The component:

  • Has no ability to perform the function
  • Delivers only part of the function
  • Delivers excessive function
  • Delivers intermittent function
  • Delivers a degraded function
  • Delivers function at the wrong time

Armed with this new information, let’s head back to our risk analysis. I think total brake failure is an important consideration, but not the only way our bicycle can fail to stop. Partial brake failure is pretty common and can be just as dangerous, so let’s incorporate that into our analysis.

Component: Drivetrain

Function: Convert rotational motion into horizontal motion
Failure Mode: Drivetrain fails to convert rotational motion into horizontal motion

Component: Brakes

Function: Convert kinetic energy into heat
Failure Mode: Brakes COMPLETELY fail to convert kinetic energy into heat
Failure Mode: Brakes PARTIALLY fail to convert kinetic energy into heat

Component: Frame

Function: Support the cyclist
Failure Mode: Frame fails to support cyclist
Function: Support the components of the bicycle
Failure Mode: Frame fails to support components

I’ve updated our existing failure mode to reflect total brake failure, and I’ve created a new one called Brakes PARTIALLY fail to convert kinetic energy into heat. We’ll find that when it comes time to mitigate these risks, we can address each individually with some specific mitigation plans.

Whew! We’ve gone through a lot so far, so let’s take a breather and let some of this sink in.

The reason we’re doing this analysis is to understand the risk profile of a bicycle more thoroughly. We are pretending that we are the manufacturer of the bicycle, and we need to first and foremost demonstrate that our bicycle is safe to operate in its intended use conditions. As competent mechanical engineers in the field of bicycle manufacturing, we will always strive to design a safe bicycle. As part of our competency, we need to understand which components of the bicycle have the highest likelihood of failing, and what the impacts of their failure are. So we do this kind of risk analysis to create an accurate risk profile and potentially introduce mitigation plans if we discover that a component introduces unacceptable levels of failure.

Causality

The next step is to determine causality. Why are these failures occurring? In the real world you might systematically determine causality by:

  • Determining the design deficiency that results in the failure mode
  • Determining a manufacturing process deficiency
  • Determining a user’s failure to perform a task

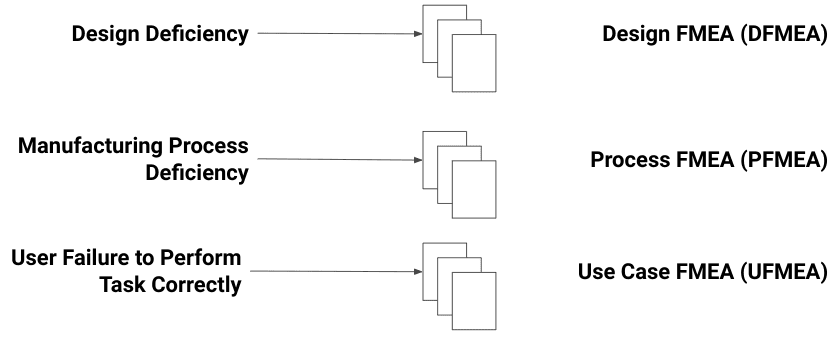

These 3 span a wide variety of potential root causes, and it’s common to separate out an FMEA into design FMEAs, process FMEAs, and use case FMEAs in order to organize the risk analysis better. For our example, we’ll only focus on design deficiencies.

Let's identify some causes of failure. A reason the drivetrain might fail to convert rotational motion into horizontal motion is because the pedals detach. Brake failure might occur because the brake cable snaps, or the brake disc overheats. Finally, the frame may fail because the seat tube or head tube detaches.

Component: Drivetrain

Function: Convert rotational motion into horizontal motion
Failure Mode: Drivetrain fails to convert rotational motion into horizontal motion
Cause: Pedals detach

Component: Brakes

Function: Convert kinetic energy into heat
Failure Mode: Brakes COMPLETELY fail to convert kinetic energy into heat
Cause: Brake cable snaps
Failure Mode: Brakes PARTIALLY fail to convert kinetic energy into heat
Cause: Brake disc overheats

Component: Frame

Function: Support the cyclist
Failure Mode: Frame fails to support cyclist
Cause: Seat tube detaches
Function: Support the components of the bicycle
Failure Mode: Frame fails to support components
Cause: Head tube detaches

Effects of Failure

We're almost there! The last step is to identify the effect of each of our failure modes. These failure modes are once again written generically, because once we get deeper into this analysis, we will want to make it easy to connect multiple failure modes to the same end effect. This will allow us to make interesting insights at the end of the analysis about how many end effects are the results of certain types of failures.

For now though, for the drivetrain component, the effect of being unable to convert rotational motion into horizontal motion is that the cyclist cannot accelerate the bicycle.

For the brakes, the effect of being unable to completely convert kinetic energy into heat is that the cyclist cannot decelerate the bicycle. The effect of partially converting kinetic energy into heat is that the cyclist's ability to decelerate the bicycle is reduced.

Finally, for the frame, the effect of being unable to support the cyclist is that the cyclist falls from the bicycle. The effect of being unable to support the components is that the components detach from the bicycle.

Component: Drivetrain

Function: Convert rotational motion into horizontal motion
Failure Mode: Drivetrain fails to convert rotational motion into horizontal motion
Cause: Pedals detach
Effect: Cyclist cannot accelerate bicycle

Component: Brakes

Function: Convert kinetic energy into heat
Failure Mode: Brakes COMPLETELY fail to convert kinetic energy into heat
Cause: Brake cable snaps
Effect: Cyclist cannot decelerate bicycle
Failure Mode: Brakes PARTIALLY fail to convert kinetic energy into heat
Cause: Brake disc overheats
Effect: Cyclist's ability to decelerate bicycle is reduced

Component: Frame

Function: Support the cyclist
Failure Mode: Frame fails to support cyclist
Cause: Seat tube detaches
Effect: Cyclist falls from bicycle
Function: Support the components of the bicycle
Failure Mode: Frame fails to support components
Cause: Head tube detaches
Effect: Components detach from bicycle

Subsystem DFMEA and Mitigations

We made it! Great job for sticking through that. We slogged our way through a system DFMEA and made a pretty basic, but useful framework to run with and expand upon. Before we wrap up, let's take a look at a completed subsystem DFMEA so we can see how it has its own recursive definition of all these elements as well. We will focus on the Pedals sub-component here.

Drivetrain Component
Sub-Component: Pedals
Function: Translate force of legs to rotational motion of crankset
Failure Mode: Pedal detaches from mounting point
Cause: Precession causes pedals to loosen
Effect: Drivetrain fails to convert rotational motion into horizontal motion
Mitigation: Reverse-threaded pedal mount

Sub-Component: Chain
Function: Translate force from crankset to force in sprocket
Failure Mode: Chain snaps
Cause: Coarse particles wear down links
Effect: Drivetrain fails to convert rotational motion into horizontal motion
Mitigation: [none]
Sub-Component: Crankset
Function: Translate rotational motion of pedals to linear motion of chain
Failure Mode: Crank arm detaches from mounting point
Cause: Precession causes crankset to loosen
Effect: Drivetrain fails to convert rotational motion into horizontal motion
Mitigation: Reverse-threaded crank mount
Sub-Component: Rear sprocket
Function: Translate linear motion of chain to rotational motion of wheel
Failure Mode: Sprocket teeth wear down
Cause: Coarse particles wear down teeth
Effect: Drivetrain fails to convert rotational motion into horizontal motion
Mitigation: Add holes to sprocket to better retain grease

Recall that a good FMEA should tell a good story. In this case, the story being told is that we have a sub-component called the pedals, whose primary function is to translate the force of the legs pushing down on them into rotational motion in the crankset. One way this function can fail to occur is if the pedal detaches from its mounting point on the crank arm. A reason this might occur is because of precession, which is a phenomenon by which rotational motion causes a screwed object to unscrew itself from its mounting point. Fortunately, a very simple way to prevent this from occuring is to reverse-thread one of the pedal mounts. That way, when the cyclist pedals, they tighten the pedal against the crank arm, as opposed to loosening it.

Of course this is just an example, and any competent bike manufacturer will include this feature from the start. But here at DEPT®, we're new to bikes and learning along the way! Good thing we did some risk analysis to figure this out ahead of time.

Summary

With this exercise, we have developed a rudimentary FMEA, but more importantly we have developed a framework to think about any engineering project in terms of risk. This can be a very powerful tool especially in software.

Remember that your code base often contains a LOT of code that no one on your team wrote. This can be in the form of NPM modules or other ecosystem dependencies. In the biz, this is sometimes called Software of Unknown Provenance, or SOUP. It's just as important to understand what's in the SOUP as it is to understand what's in your own code.

A great interface document for understanding what's in the SOUP that might make you sick is an FMEA made by the provisioner of the SOUP. When that's not available, or another equivalent that describes potential failure points in the code, then you really ought to be checking out what's in those dependencies to make sure you're not introducing unknown amounts of risk into your project. It is common for dependency developers to provide an automated test suite, which is helpful to study in order to identify any blindspots in their testing that might impact the behavior of your program.

What's Next?

Now that we have created a rudimentary FMEA, what's next?

  • We should introduce a mathematical framework that allows us to compute probabilities of failure and severities of effects.
  • We should also organize our efforts to burn down risk by focusing on components with the highest probabilities of failure and/or severities of effects

By introducing some math, we can start to visualize our risk burndown in much more interesting ways.

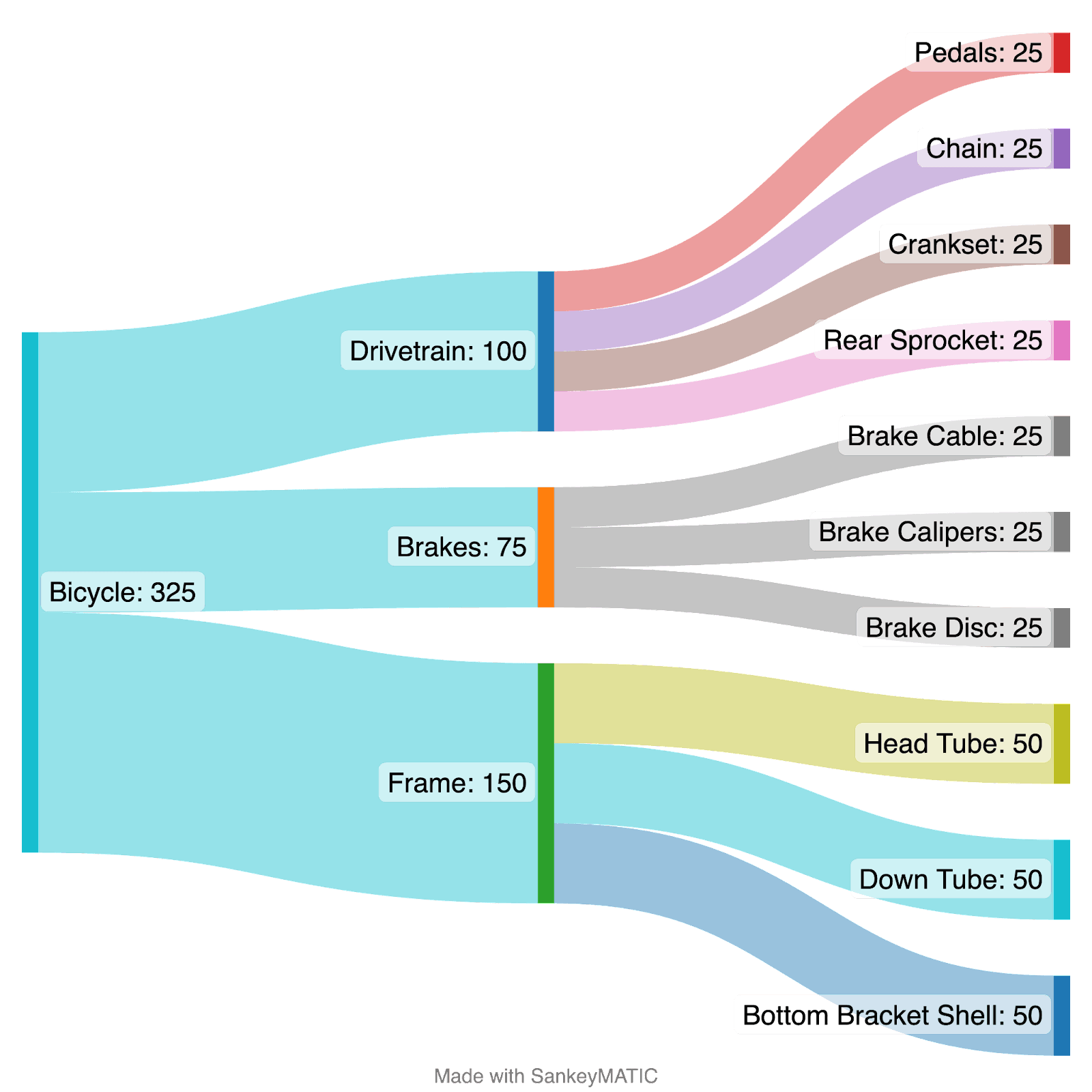

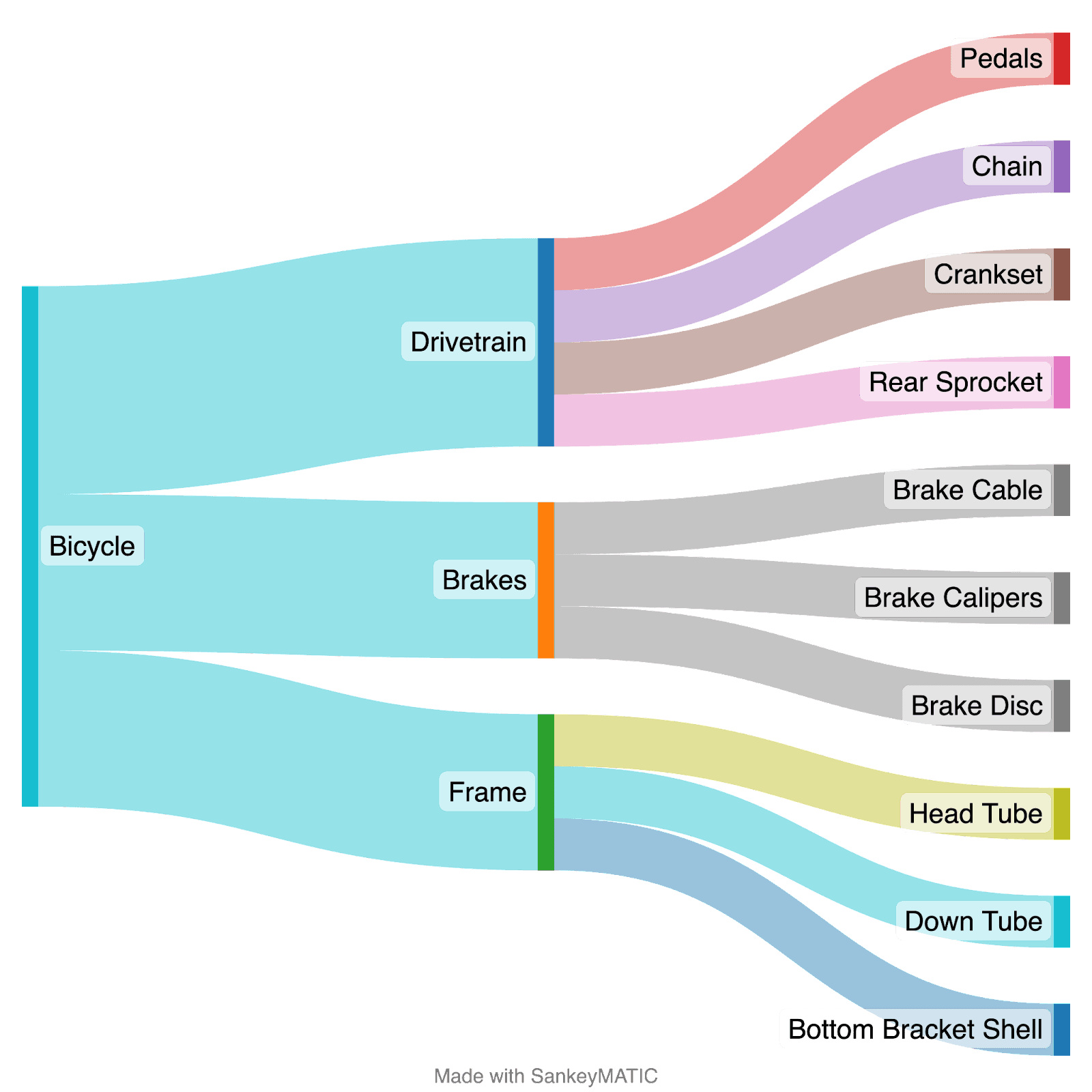

For example, here is a Sankey diagram I created. This type of chart is called a flow diagram, where the width of each connection represents a vaguely-defined "riskiness" measure that I've just made up. You could think of this as some sort of product of probability of failure x severity of failure, broken down by component. In this naive example, I'm assuming that every component contributes equally to this made-up "riskiness" measure.

But by creating a mathematical framework for our components to interact with, we can start to come up with a more interesting diagram. This diagram can now tell us which particular components and sub-components contribute the most to our overall risk profile. With this information, we can decide where our efforts are best directed in order to reduce the overall risk profile of the project.

For example, here at DEPT® Bicycle Industries (a made up company), we know what we're doing when it comes to drivetrains and brakes. That's old hat to us. But bicycle frames? That's new, and difficult. There's a lot of risk involved in our current techniques. So we have some extra work to do to burn down the risk associated with our brittle bicycle frames.

And we can clearly see that in the above diagram! The bicycle frame component has an overall risk value of 150, representing nearly half of the risk associated with our bike in total. Program managers can use this information to better allocate some extra resources to the parts of the project with the most risk.

Conclusion

Understanding the full risk profile of your project can be extremely lengthy. In regulated industries there are entire groups dedicated to this single task. Depending on the type of development you're doing, it's probably not necessary to construct an FMEA for every single component of your project.

Perhaps on the next project you start, you could take some time up front to identify a few critical components of your application that might benefit from risk analysis. You will find that:

  • You understand your code base in more detail than before
  • You're able to communicate how long a bug fix might take with more accuracy
  • You're able to identify future issues before they manifest themselves in a production environment
